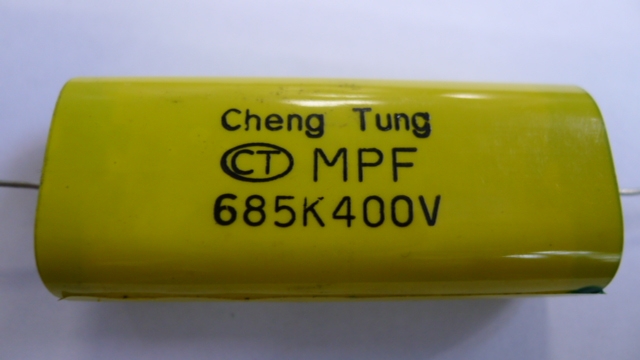

MPF/MFF Film Capacitor(Flat Oval)

MPF/MFF Film Capacitor(Flat Oval)
    小さなマップをクリックして　地図を拡大表示できます
    製品名 : MPF/MFF Film Capacitor(Flat Oval)
    製品コード : MPF-MFF
    製品の説明

    ■   特點FEATURES

    ．低散逸因子

    ．自愈性強

    ．負溫度係數

    ．Low dissipation factor

    ．Self-healing property



    ■   用途APPLICATIONS

    ．應用於高頻、脈衝電壓

    ． For high frequency , pulse application

    お問い合わせ
    製品

    規格SPECIFICATIONS

    介質

    Dielectric

    聚丙烯薄膜Polypropylene film

    聚乙酯薄膜Polyester film

    電極

    Electrodes

    真空蒸金屬Vacuum evaporated metal

    包封

    Coating

    阻燃防火膠帶並以環氧樹脂灌封Wrapped in flame retardant tape

    and epoxy resin end seal.

    導線

    Leads

    軸向鍍錫導線Axial leads of tinned wire

    氣候類別

    Climatic Catalogue

    40 / 100 / 21

    靜電容量與額定電壓

    Capacitance versus Rated Voltage(UR)

    250 ~ 2000VDC  0.1 uF ~ 35uF

    靜電容量誤差

    Capacitance Tolerance

    J = ± 5%  K = ±10%  M = ± 20%

    散逸因素(損耗角正切)

    Dissipa

    ion Factor (Tangent of Loss)

    ≦0.1% at 1KHz and 20℃(MPT/MPF)

    ≦1.0% at 1KHz and 20℃(MFT/MFF)

    耐電壓

    Voltage Proof

    T-T WV x 1.6  1min

    T-C 2000V.DC 1min

    絕緣電阻

    Insulation Resistance

    C≦0.33uF  IR≧30,000MΩ

    C＞0.33uF  IR≧10,000MΩ / uF
