    Product Name : Transient Voltage Suppressors
    Product No : 1.5KE-SERIES
    Inquiry
    Product Introduction

    PEIR Type

    Mode No. :

    1.5KE SERIES

    Product Name :

    Transient Voltage Suppressors

    Description :

    GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
    1500 Watt Peak Power VOLTAGE - 6.8 to 540 Volts 5.0 Watt Steady State

    Features :

    Plastic package has Underwriters Laboratory Flammability Classification 94V-O
    Glass passivated chip junction in DO-201AE package
    1500W surge capability at 1.0ms
    Excellent clamping capability
    Low zener impedance
    Fast response time: typically less than 1.0 ps from 0 volts to BV min
    Typical IR less than 1μA above 10V
    High temperature soldering guaranteed: 260°C/10 seconds/.375" ,(9.5mm) lead length/5lbs., (2.3kg) tension
    High temperature soldering : 260OC / 10 seconds at terminals
    Pb free product at available : 99% Sn above meet RoHS environment substance directive request

    MECHANICAL DATA

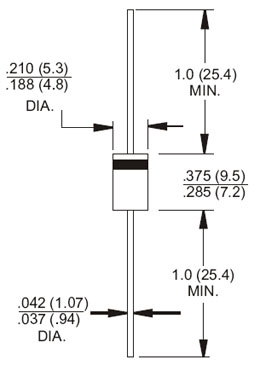

    Case: JEDEC DO-201AE molded plastic
    Terminals: Axial leads, solderable per MIL-STD-202, Method 208
    Polarity: Color band denoted cathode except Bipolar
    Mounting Position: Any
    Weight: 0.045 ounce, 1.2 gram

    DEVICES FOR BIPOLAR APPLICATIONS
    For Bidirectional use C or CA Suffix for types 1.5KE6.8 thru types 1.5KE440.

    Electrical characteristics apply in both directions.

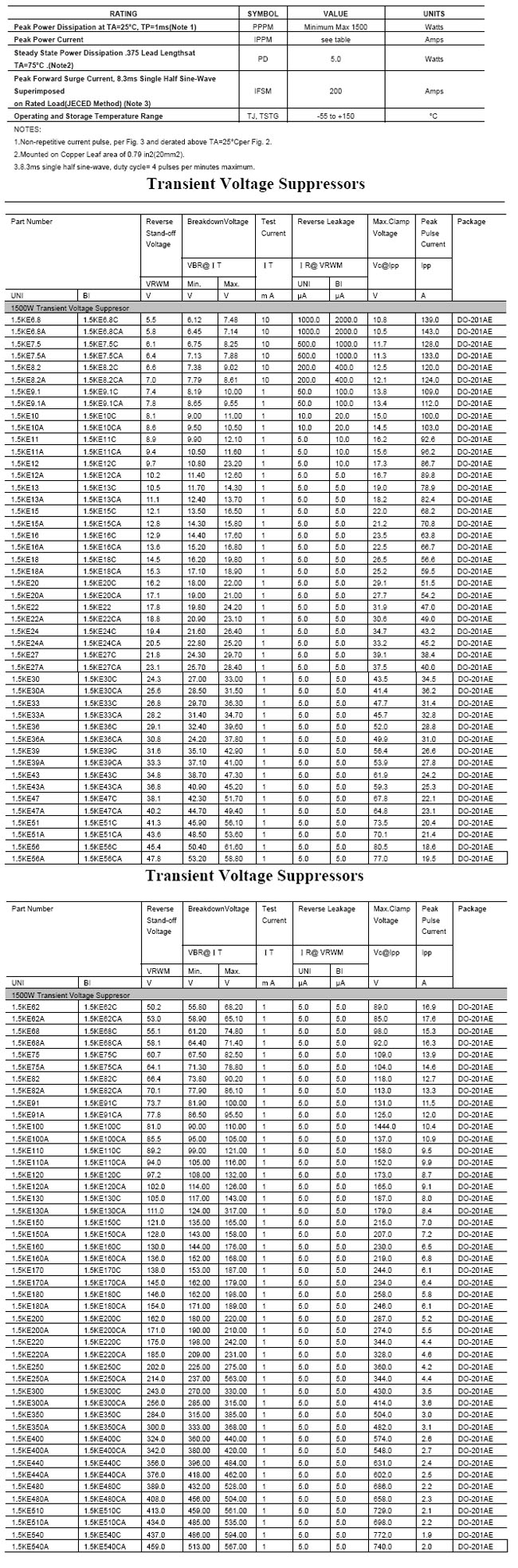

    Specification

    proimages/product/Diode/pro10_1.5KE_SERIES-1.jpg
