X1 Film Capacitor

X1 Class( 350V to 500V)

Product Name :

X1 Film Capacitor

Goods of Description :

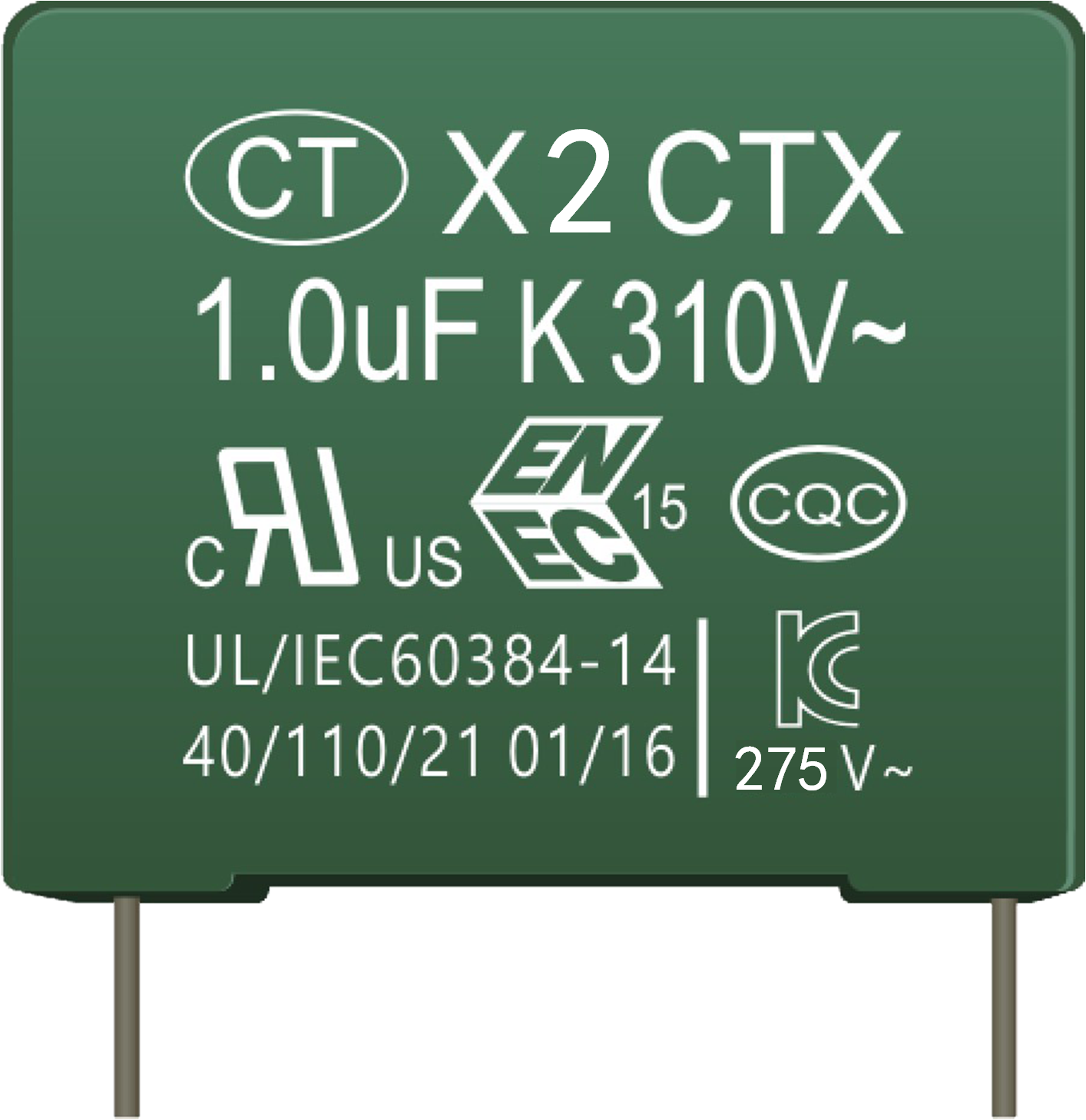

CTX are non-inductively wound with a metallized Polypropylene film dielectric/electrode, encapsulated in flame retardant (UL94,V-0) plastic case and epoxy resin end seal.

Features :

■ Provides interference suppression, all safety approval
■ Overvoltage stress withstanding
■ Self-healing properties
■ Active and passive flame retardent

Specification :

Climate Category: In accordance with DIN40040 GMF
a) G=Minimum Limited Temperature….-40℃
b) M=Maximum Limited Temperature….+110℃.
c) F=Humidity Category…Average relative humidity≦75%, 95% for 30 days per year,
continuously:85% for the remaining days, occasionally.

■ Rated Voltage:………500/480/440/400/380/350/330V.AC, 50~60Hz
■ Capacitance Range:…………0.047 ~10uF
■ Capacitance Tolerance: J(±5%), K (±10%), M(±20%)

■ Withstand Voltage:

a) Between Terminals..1500V.AC, 60Hz or 2200V.DC 1s.
b) Between Terminals and Case…..2200V.AC, 60Hz 60s.

■ Dissipation Factor:
a) ≦0.1% at 1 KHz and 20℃
b) ≦0.3% at 10 KHz and 20℃

■ Insulation Resistance:
a)Between Terminals……≧3 x MΩ for C≦0.33uF;
≧1 x MΩ/uF for C>0.33uF;
b)Between Terminals and Case………≧3 x MΩ
Measured at 100±15 V.DC, 60s 20℃

Type :

■ Ideal for use in line bypass, antenna coupling,across-the-line and spark killer circuits.
■ Available for EMI filter.
■ Switching power supply applications.
■ Business machines appliances, such as: typewriters, adding machines, computer displays and monitors.
■ Household appliances, such as: mixers, fans, coffee grinders audio and TV circuits.
■ Thyristor and triac appliances, such as: dimmers.

Other :

CTX List of Standard Product
