    Y2 Film Capacitors

    Y2 Film Capacitors
      Enlargement
      Product Name : Y2 Film Capacitors
      Product No : Y2-Class
      Inquiry
      Product Introduction

      Y2 Class

      Product Name :

      Y2 Film Capacitors

      Goods of Description :

      CTX are non-inductively wound with a metallized Polypropylene film dielectric/electrode, encapsulated in flame retardant (UL94,V-0) plastic case and epoxy Resin end seal.

      Features :

      ■ Very small dimensions
      ■ Self-healing properties

      Specification :

      Rated Voltage:

      Y2  250VAC, 50~60Hz

      Capacitance Range :

      Y2  0.0022uF ~ 0.1uF

      Test Voltage Between Terminals:

      3000V.DC/1 sec. for Y2 Capacitors

      Insulation Resistance:

      A

      Between Terminals…… ≧ 3 x 104 MΩ for C ≦ 0.33uF;
      ≧ 1 x 104 MΩ/uF for C ＞ 0.33uF;

      B

      Between Terminals and Case……… ≧ 3 x 104 MΩ
      Measured at 100±15 V.DC, 60s 20       ℃

      Application :

      ■ Ideal for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
      ■ Available for EMI filter.
      ■ Switching power supply applications.
      ■ Household appliances, such as: mixers, fans, coffee grinders audio and TV circuits.

      Type :

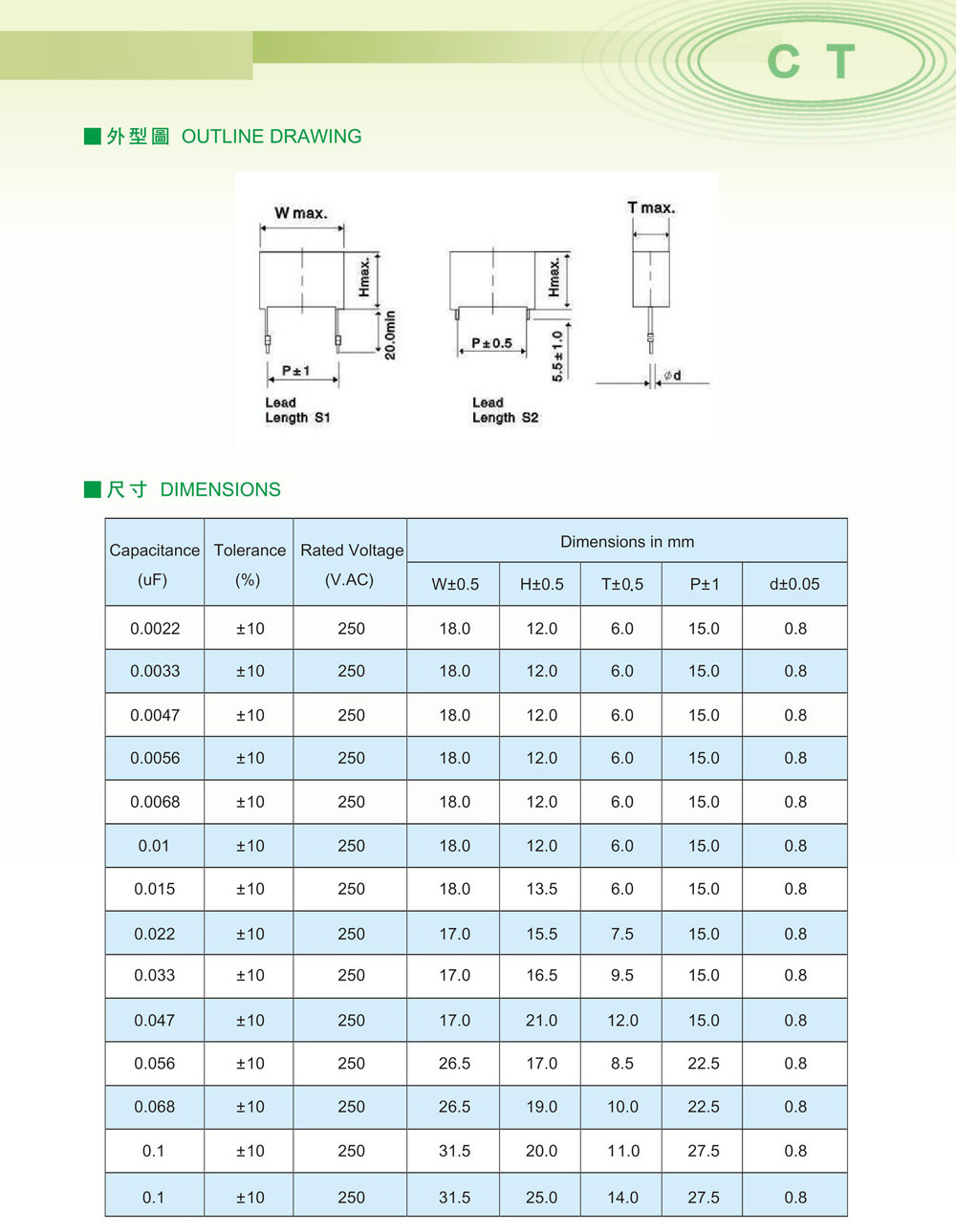

      DIMENSIONS DATA
